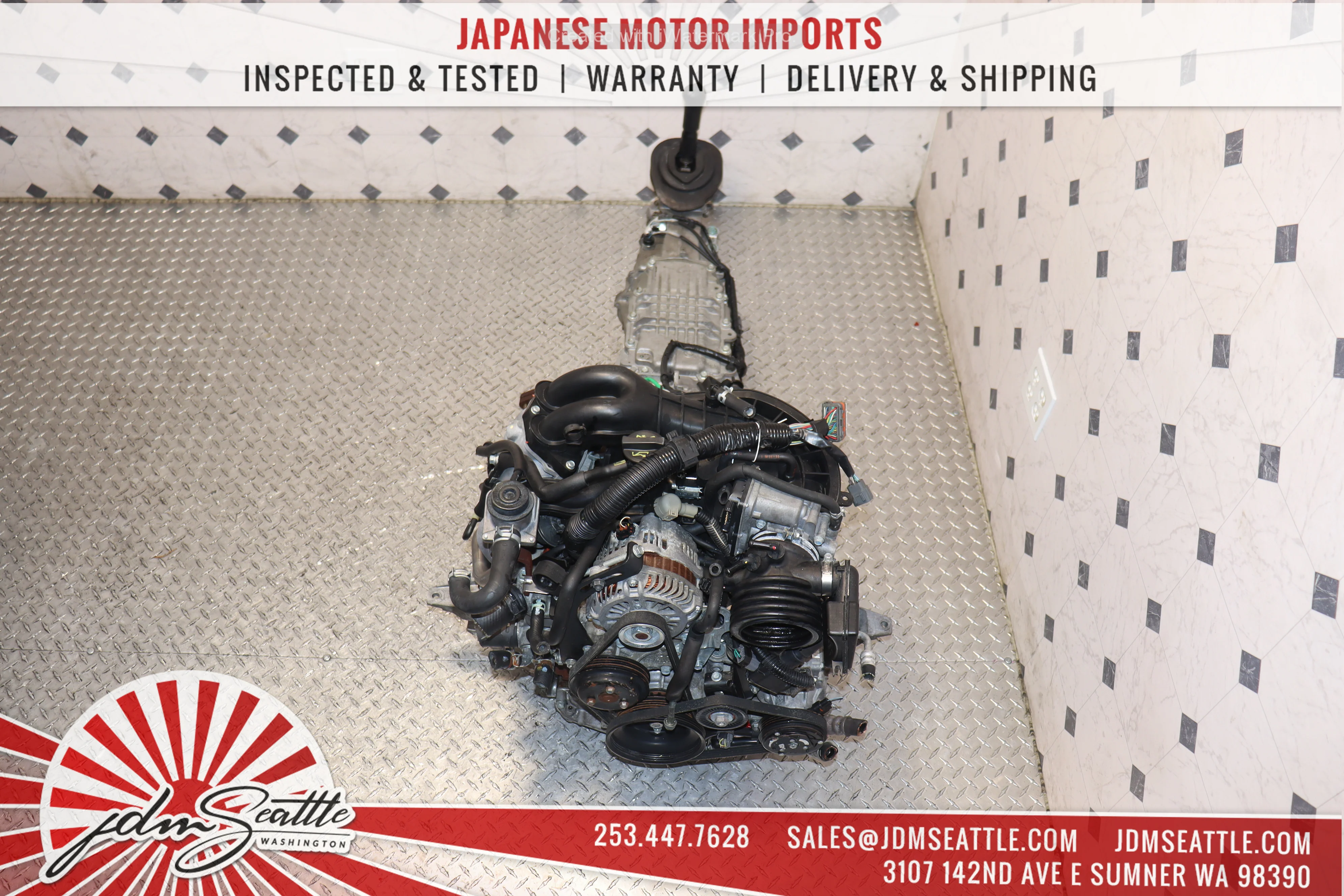

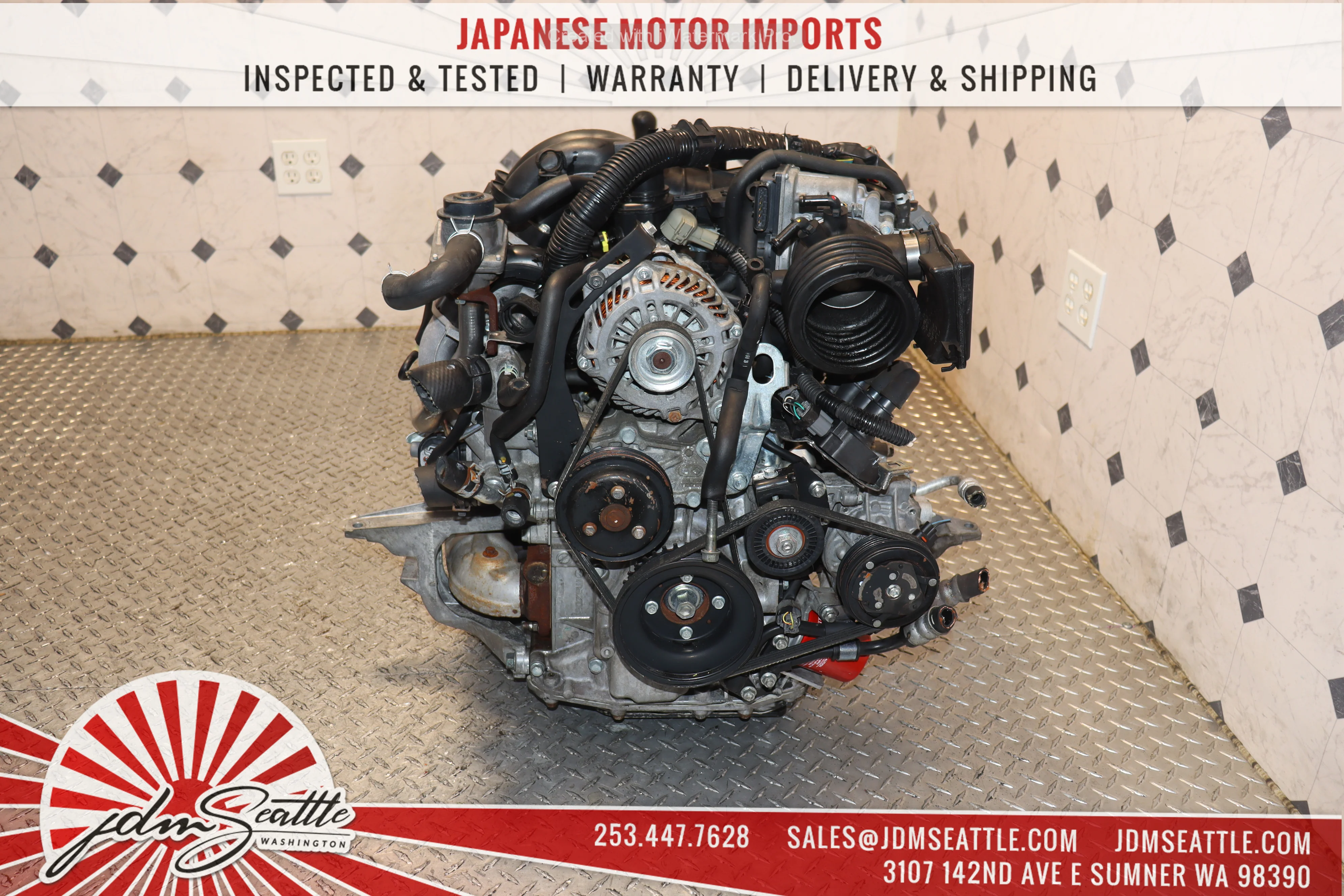

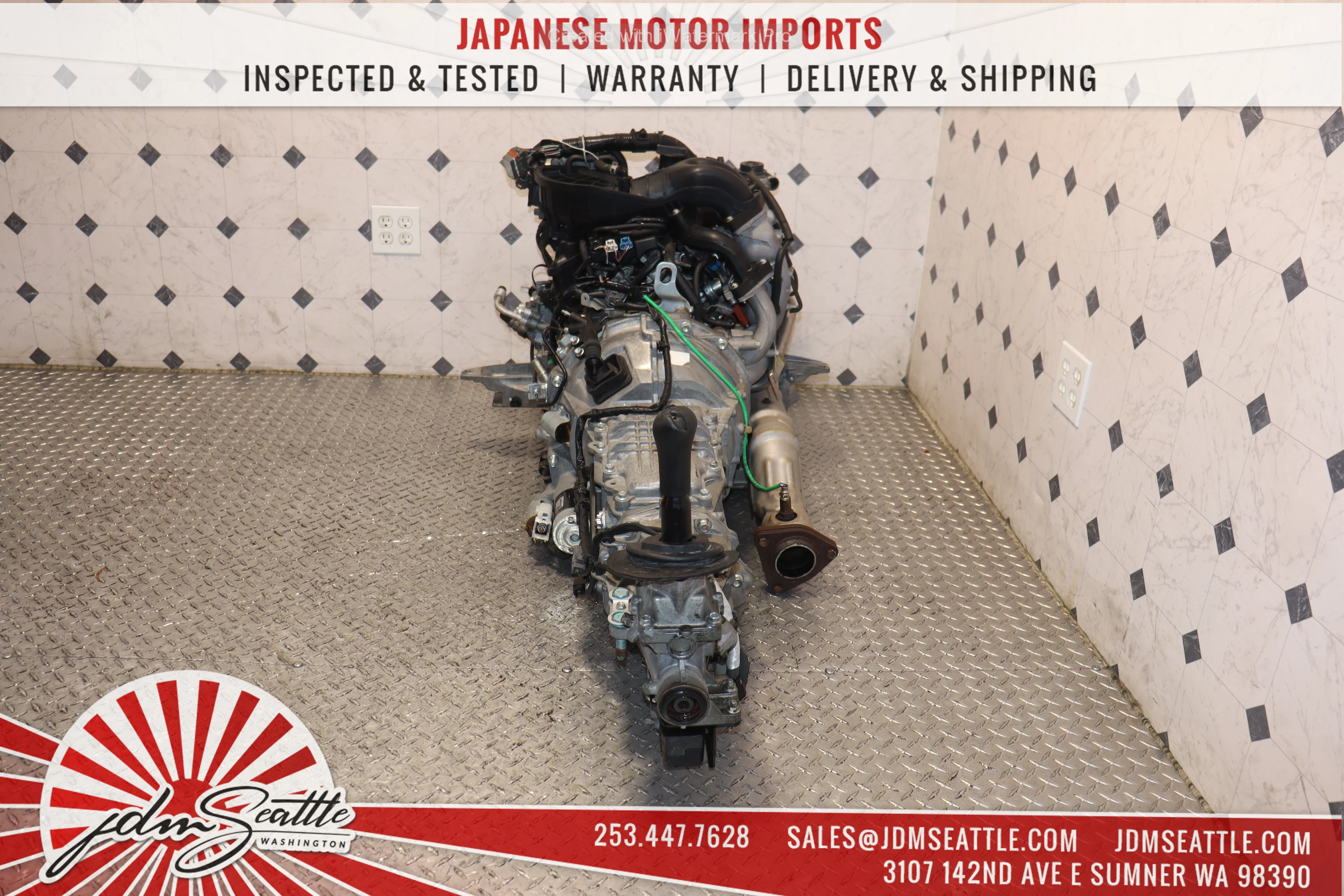

2009-2011 Mazda RX8 13B Renesis JDM Engine | 1.3L 6 Port Rotary Wankel Series 2 Motor

Feature	Details

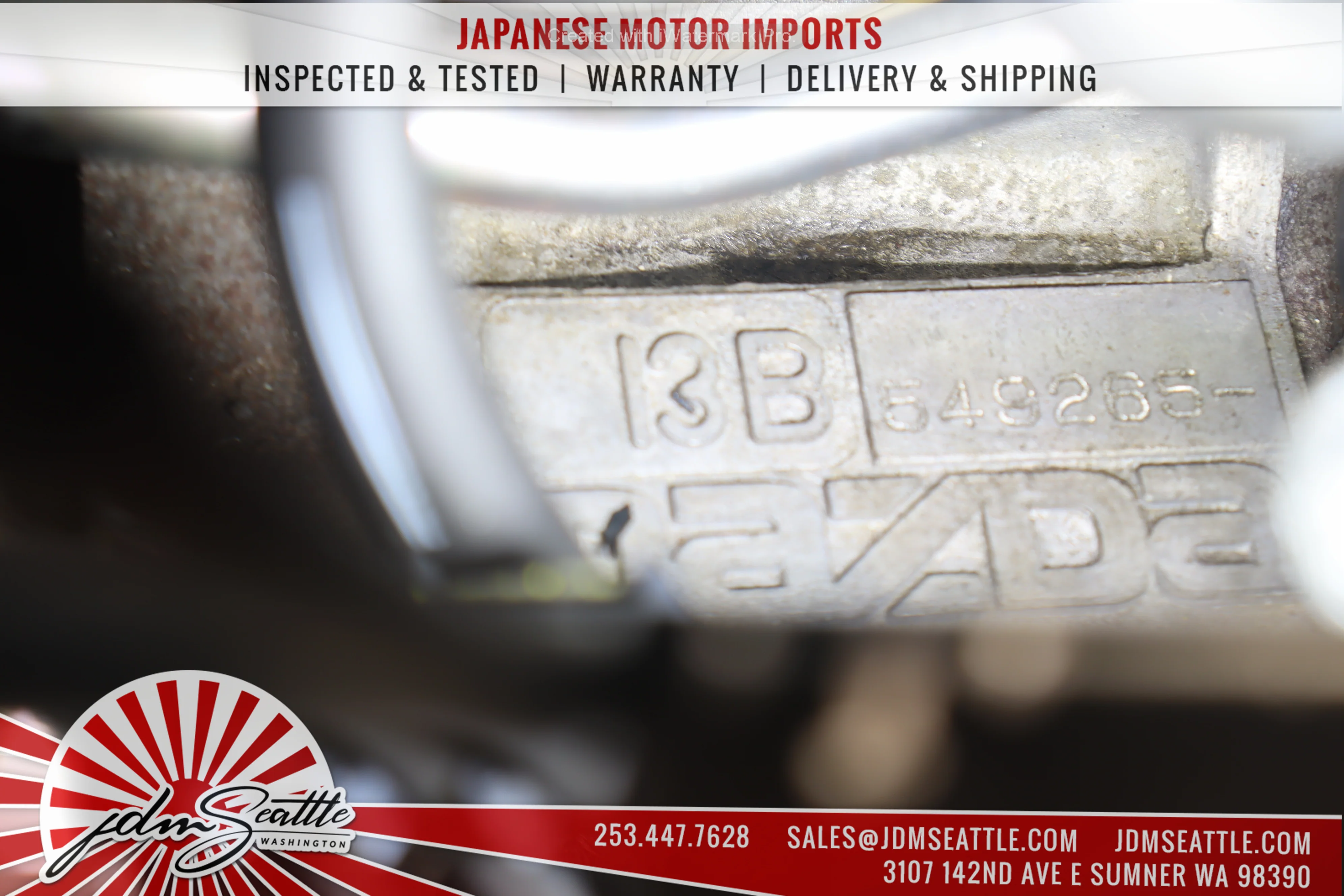

Engine Code	13B-MSP Renesis (Series 2)
Configuration	2-Rotor Wankel Rotary
Port Design	6-Port (High-Power Output)
Transmission	6-Speed Manual (S2 Specific)
Horsepower	232 hp @ 8,500 rpm (USDM Equivalent)
Torque	159 lb-ft @ 5,500 rpm
Redline	9,000 RPM
Lubrication	S2 Dual EMOP System (3 Nozzles per Rotor)



Vehicle Fitments

This JDM S2 powertrain is designed for the following North American (USDM) models:

• 2009-2011 Mazda RX-8 (Sport, Grand Touring, R3 - Manual Transmission)

---

Installation & Technical Notes

The Series 2 rotary is a precision machine. To ensure a successful installation and maintain your warranty, please follow these technical guidelines:

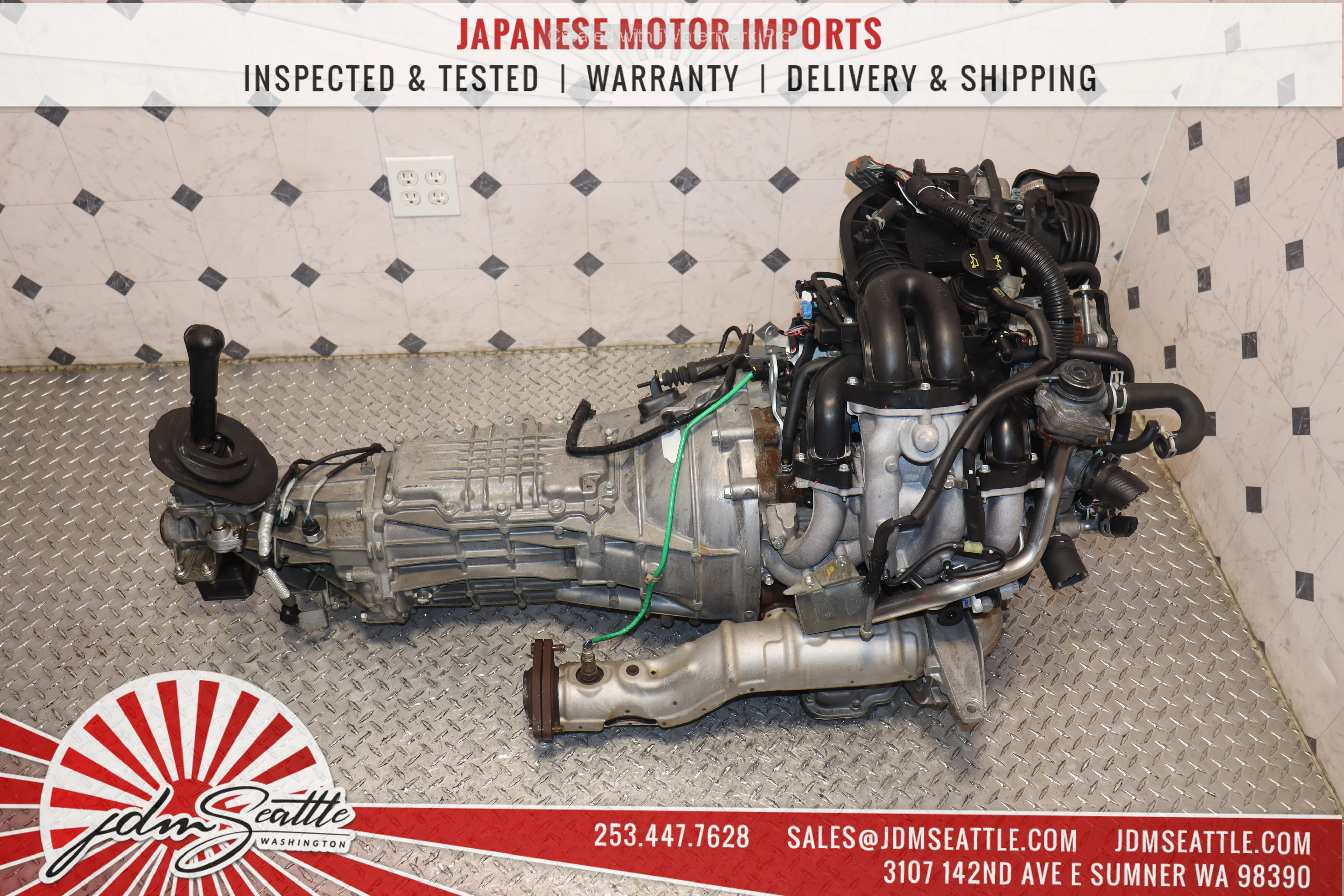

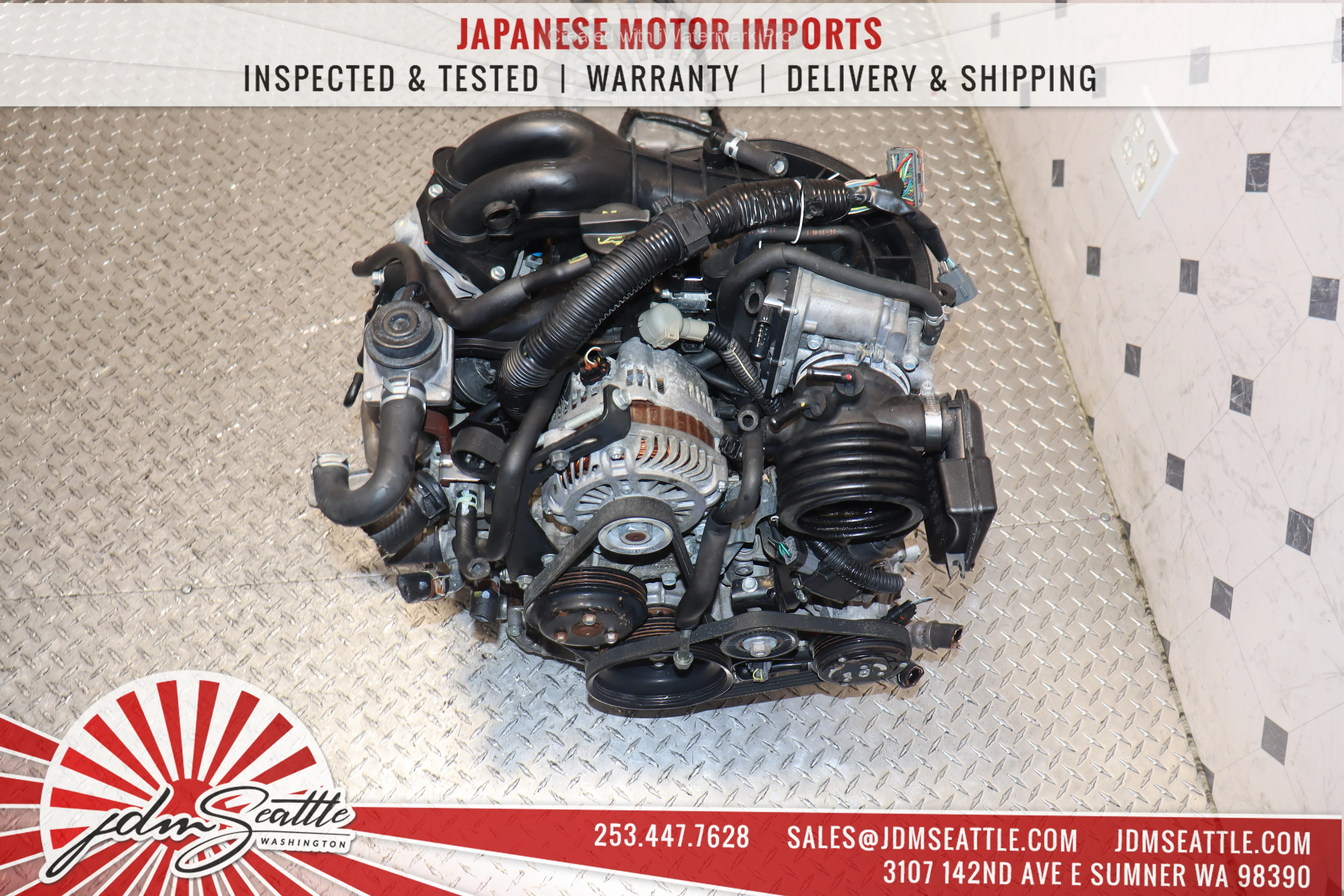

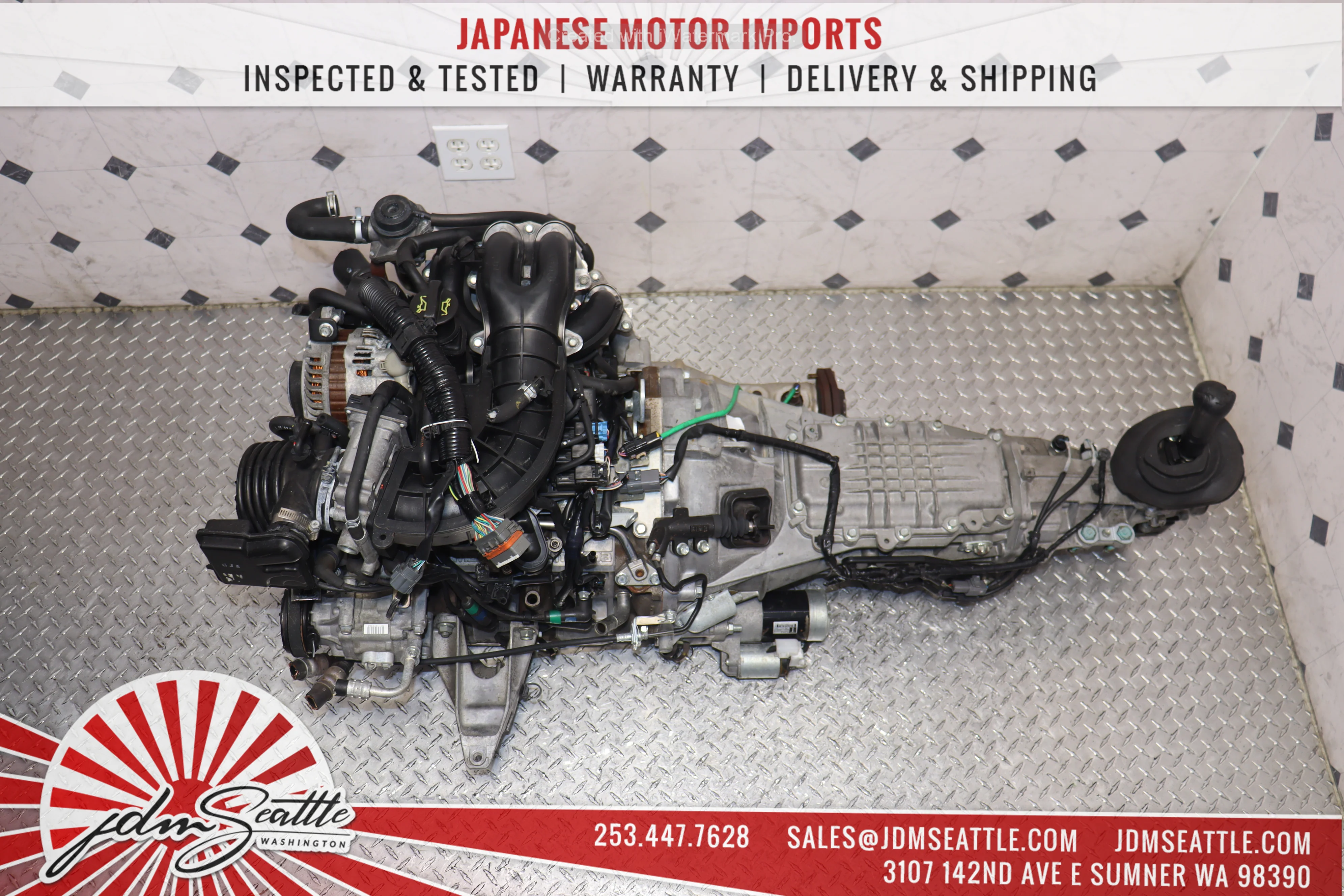

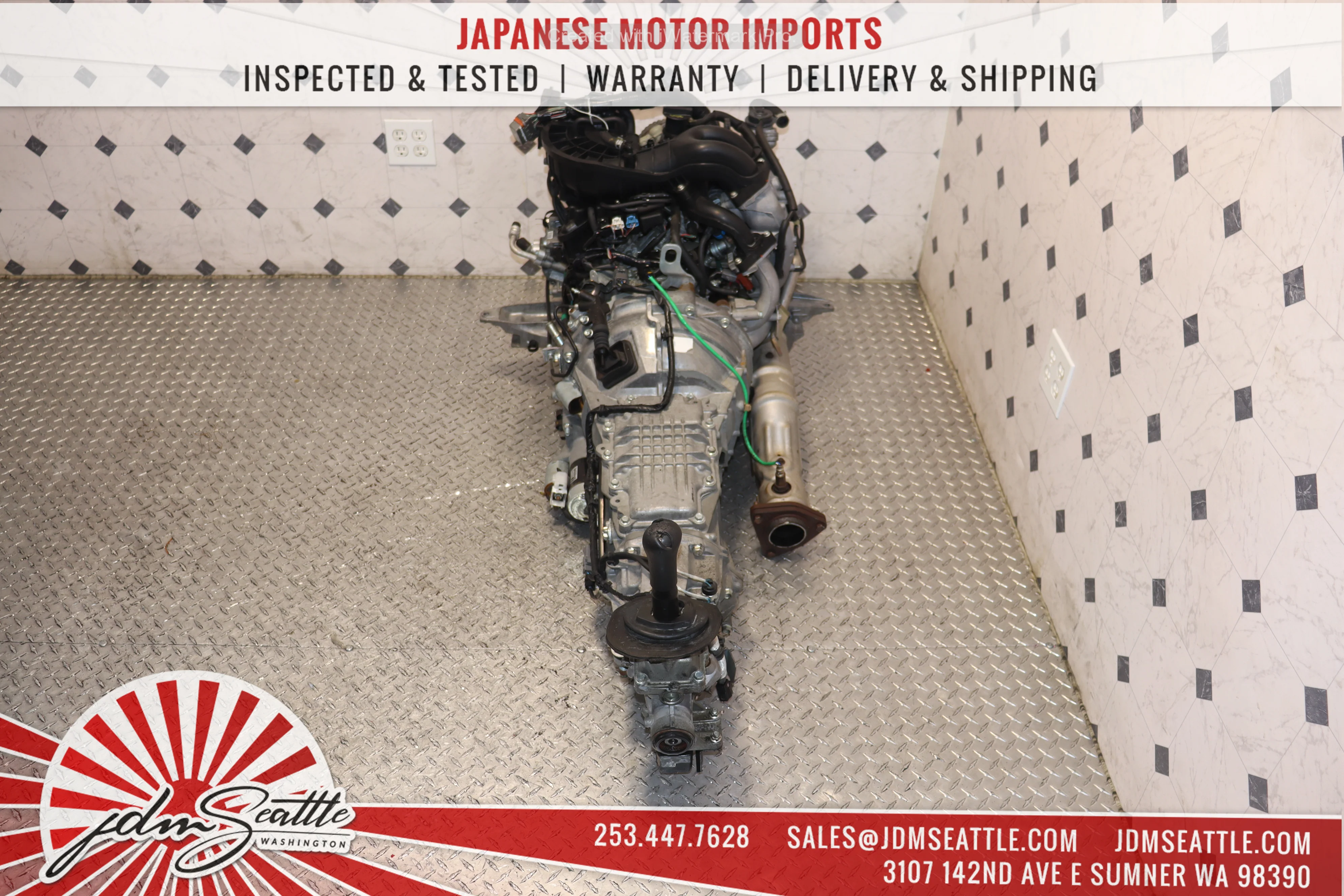

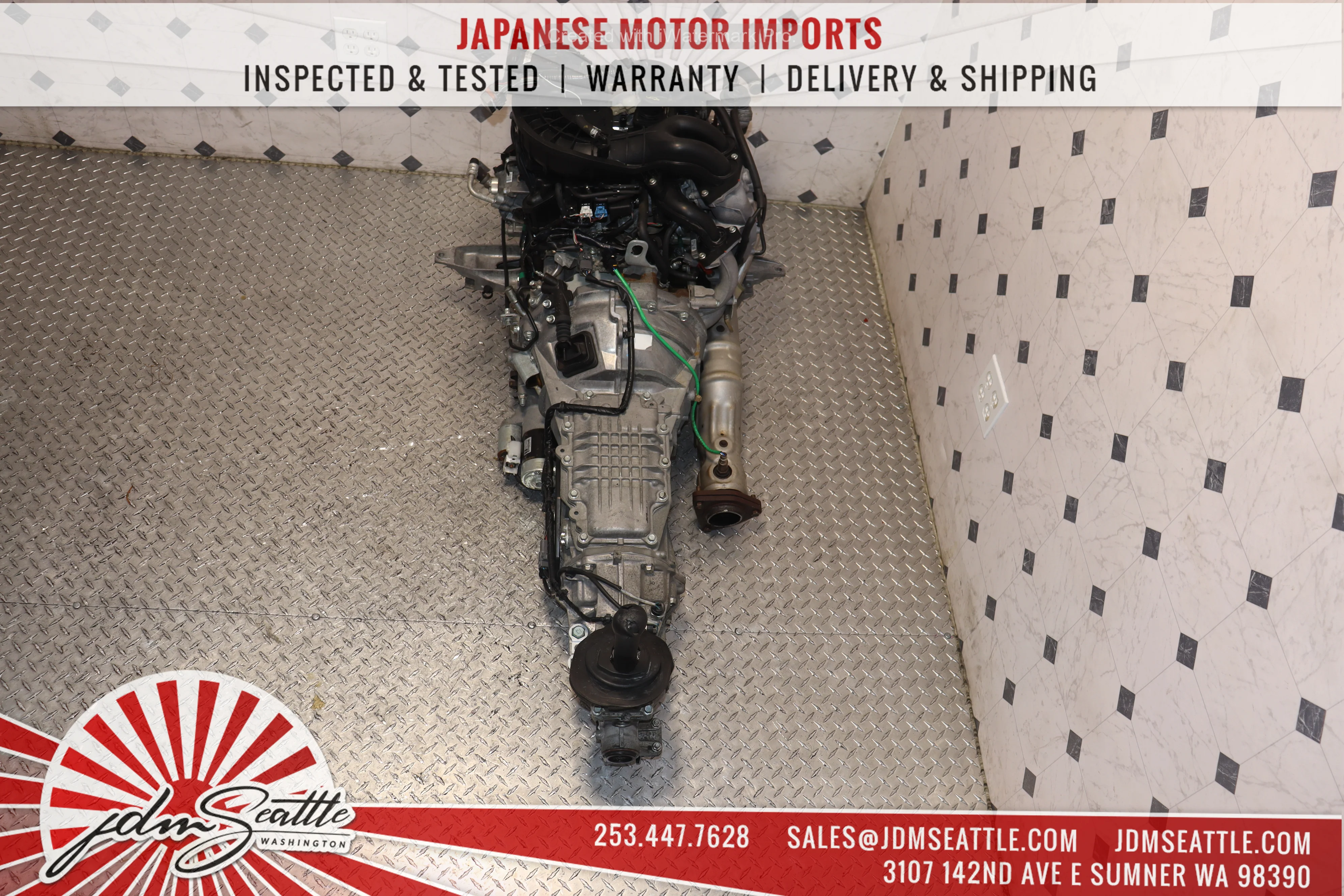

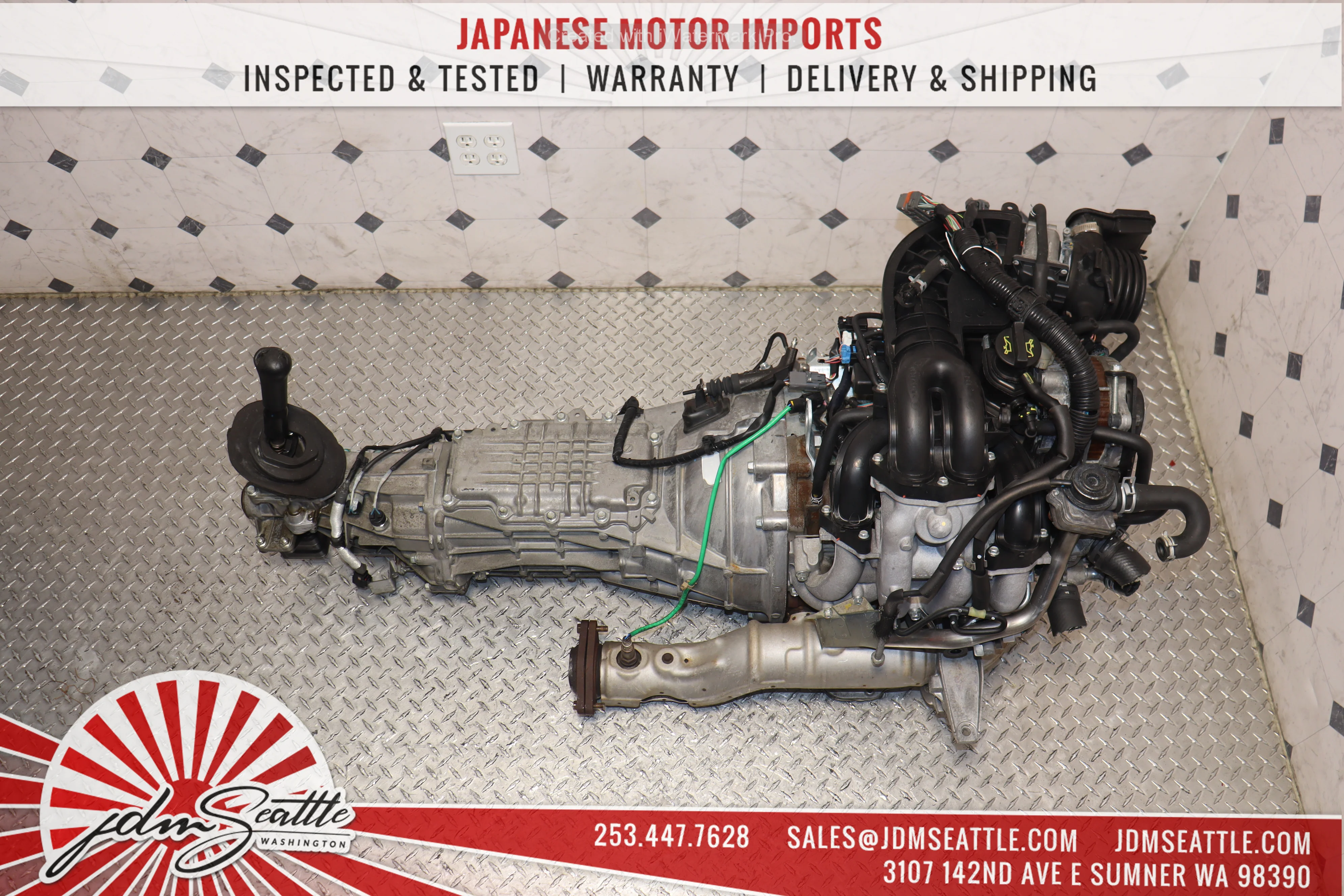

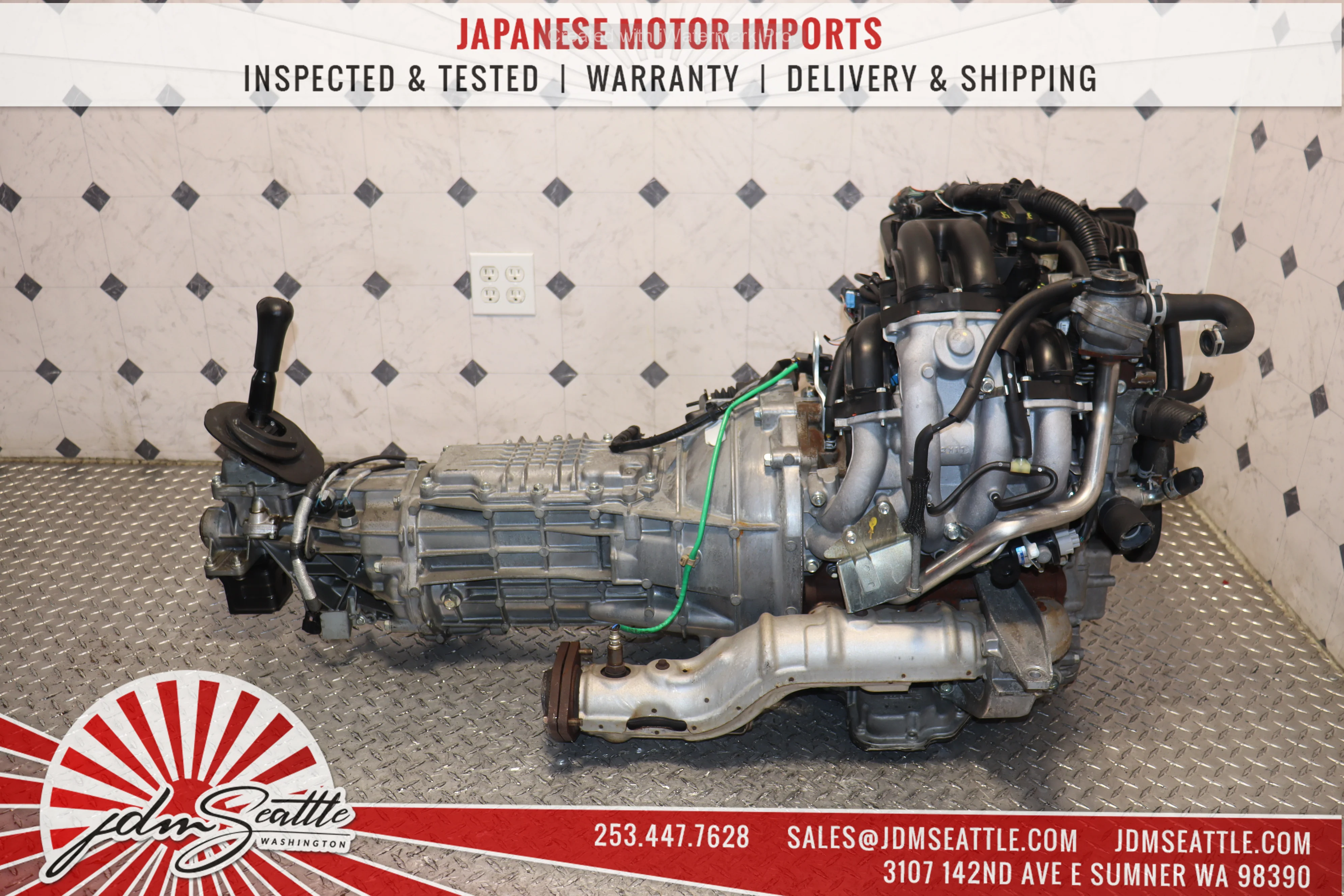

• Complete Drivetrain Swap: This package includes the engine long block, intake manifold, 6-speed manual transmission, and clutch/flywheel assembly. You must utilize the Series 2 specific ECU and wiring harness to control the electromagnetic oil metering pumps.

• Oil System Priming: Before the first startup, the engine must be cranked with the eccentric shaft position sensor disconnected to build oil pressure and lubricate the stationary gears and apex seals.

• Ignition Health: Rotary engines are extremely sensitive to ignition health. We strictly recommend installing brand-new ignition coils, wires, and spark plugs immediately.

• Essential Maintenance: We strongly recommend replacing the following parts during the swap:

  • Spark Plugs: NGK RE7C-L (Leading) and RE9B-T (Trailing).

  • Engine Oil: High-quality 10W-30 or 20W-50 Conventional/Idemitsu Rotary Premix.

  • Coolant: Genuine Mazda FL22 Green Coolant.

  • Transmission Fluid: 75W-90 Synthetic Gear Oil (GL-4).

• Premixing: To further extend the life of your JDM apex seals, we recommend "premixing" a high-quality 2-stroke rotary oil into your fuel tank at every fill-up.
