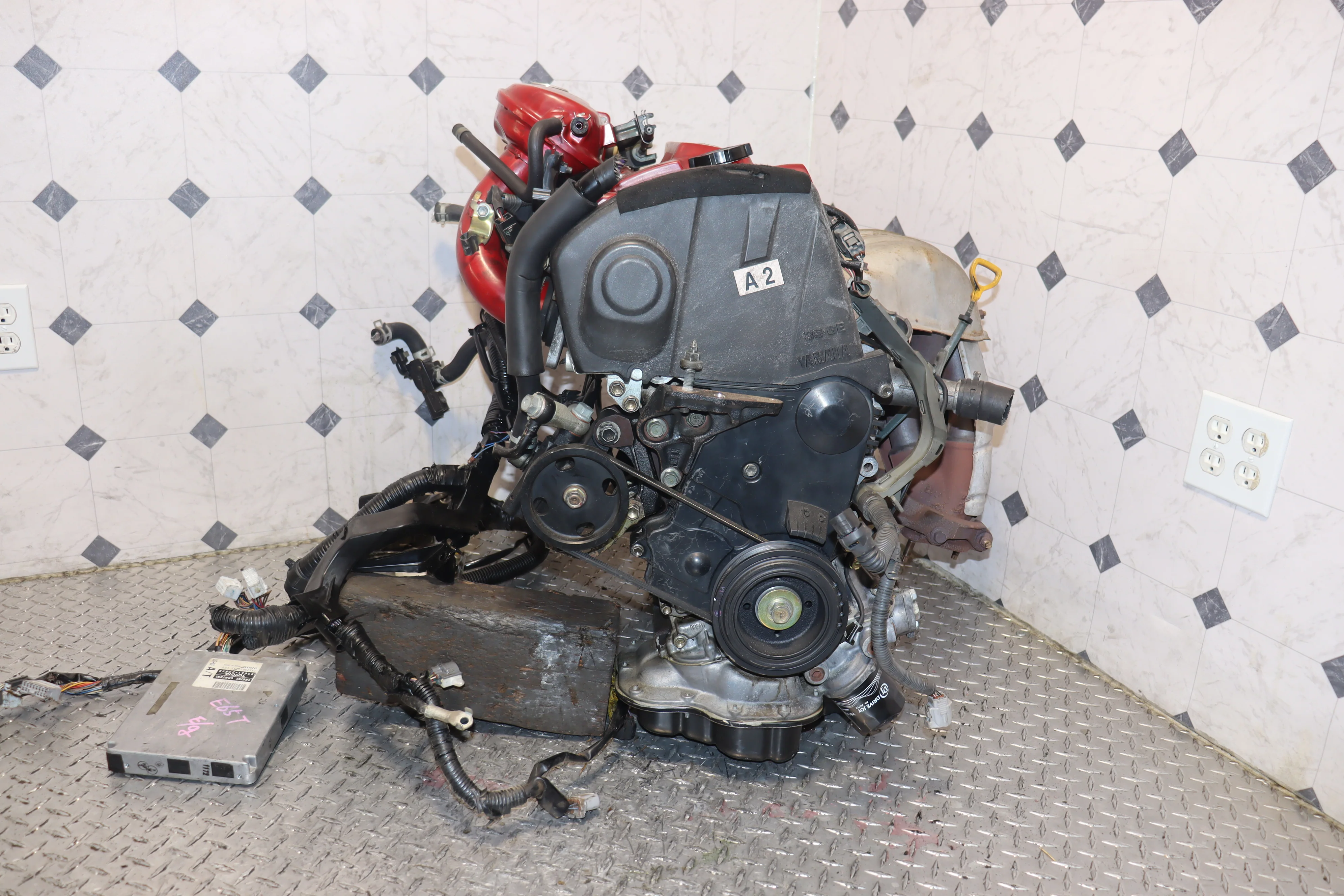

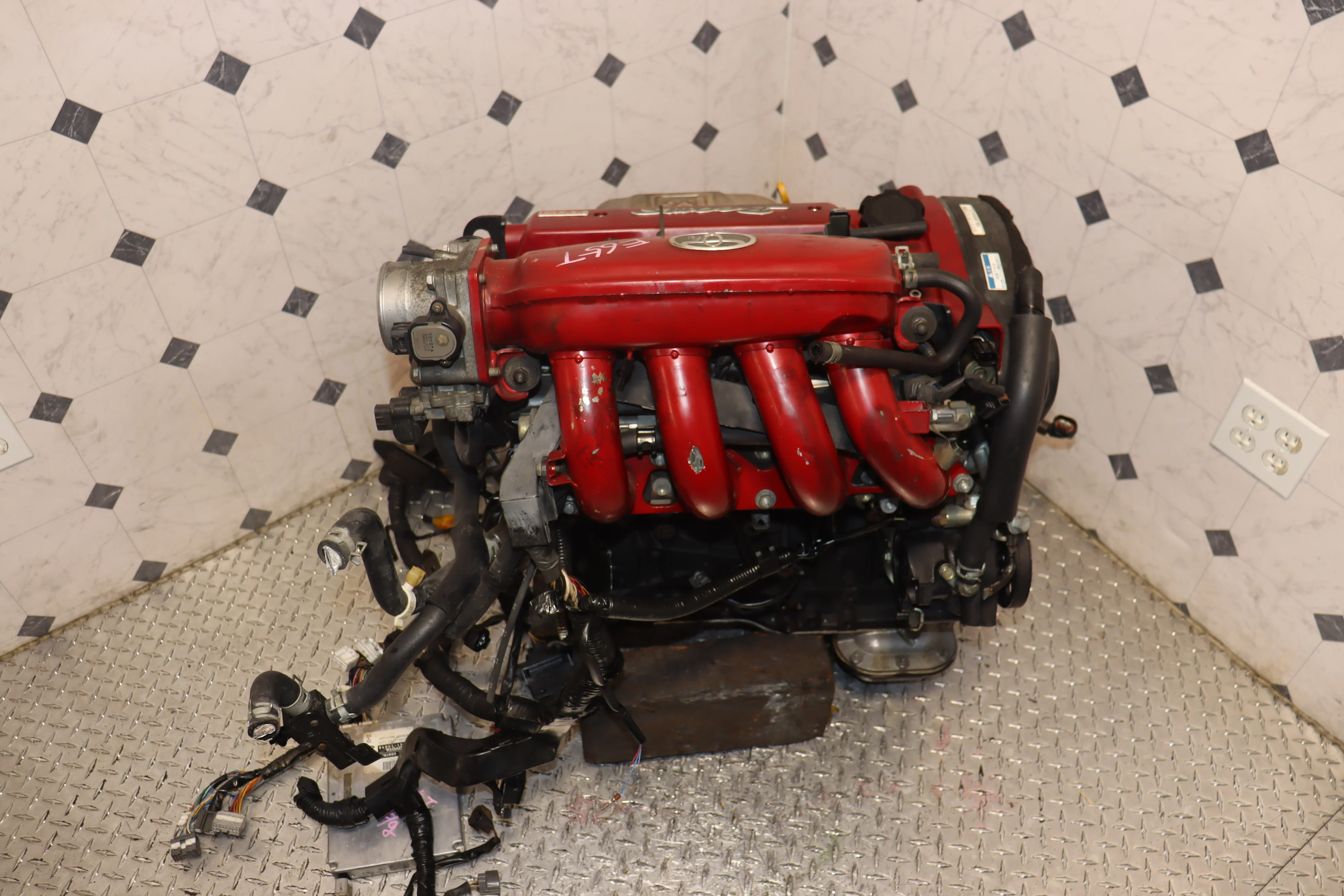

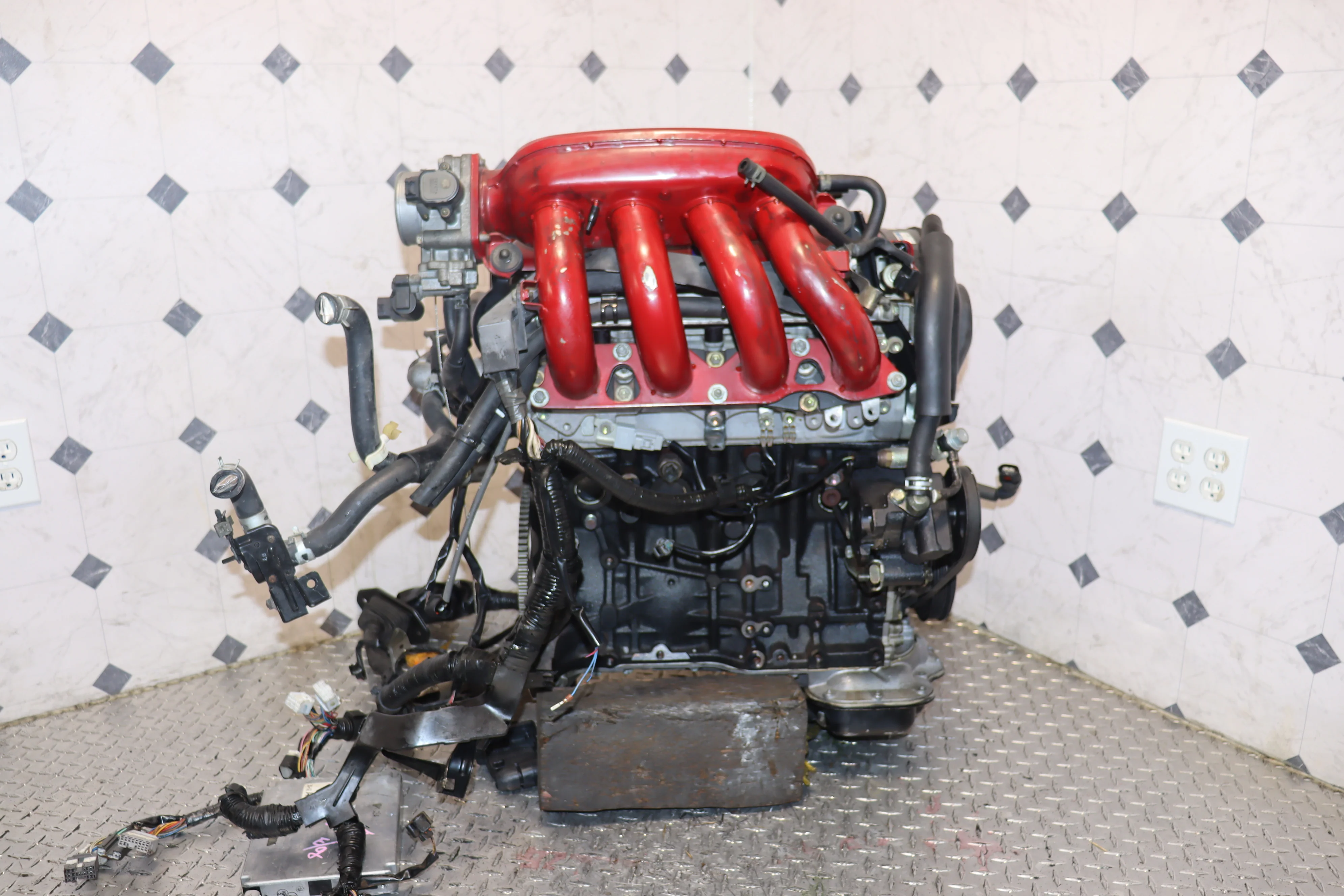

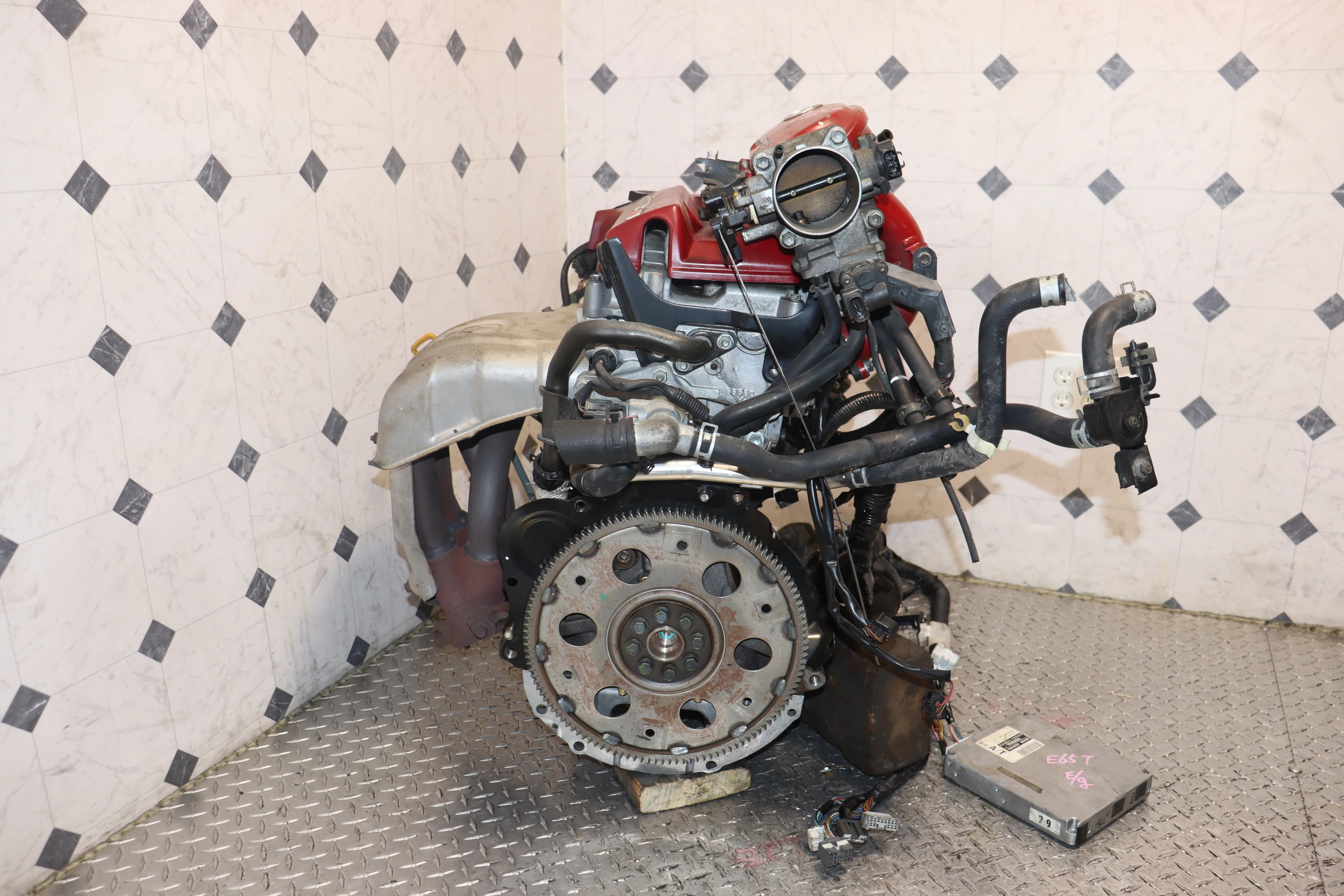

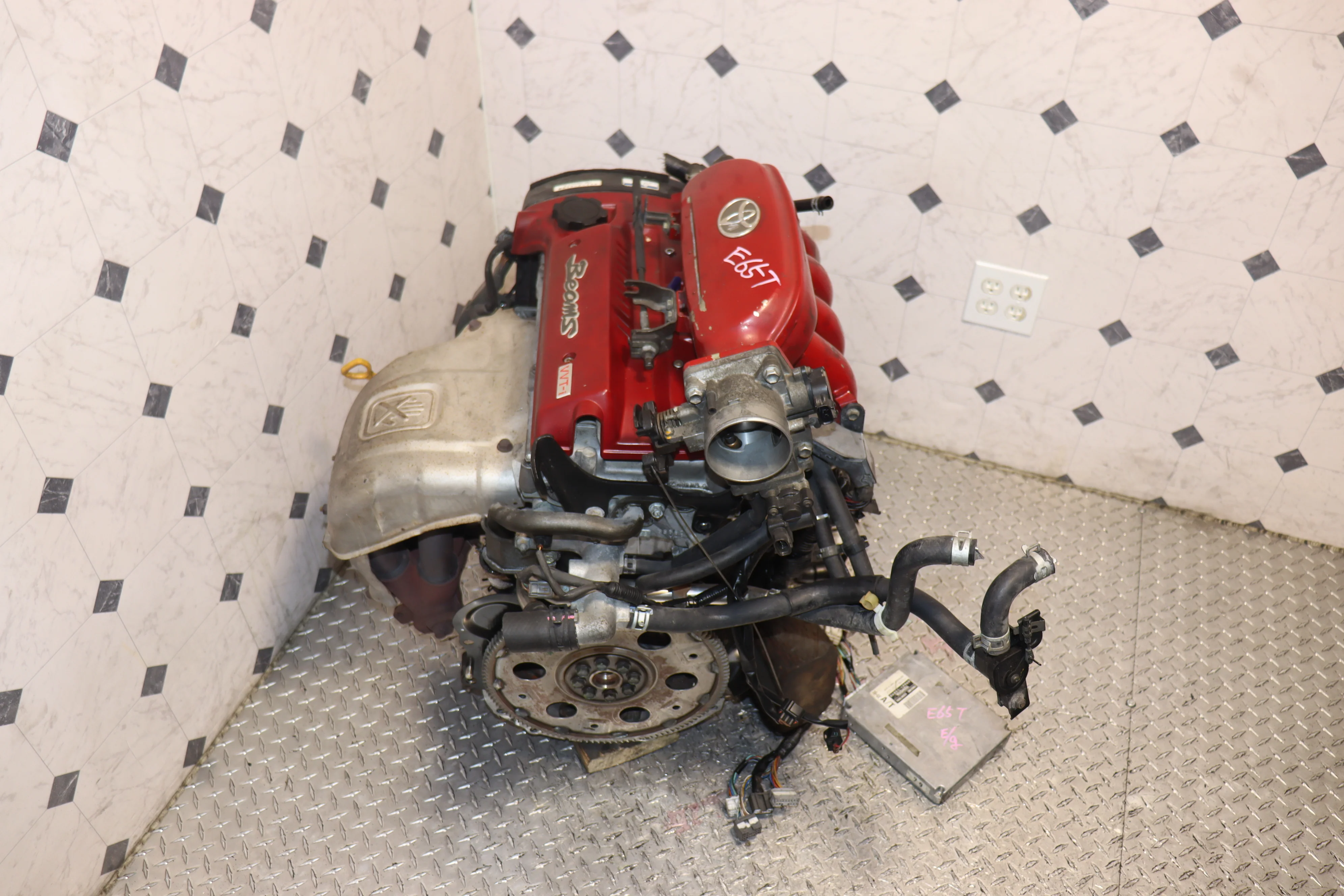

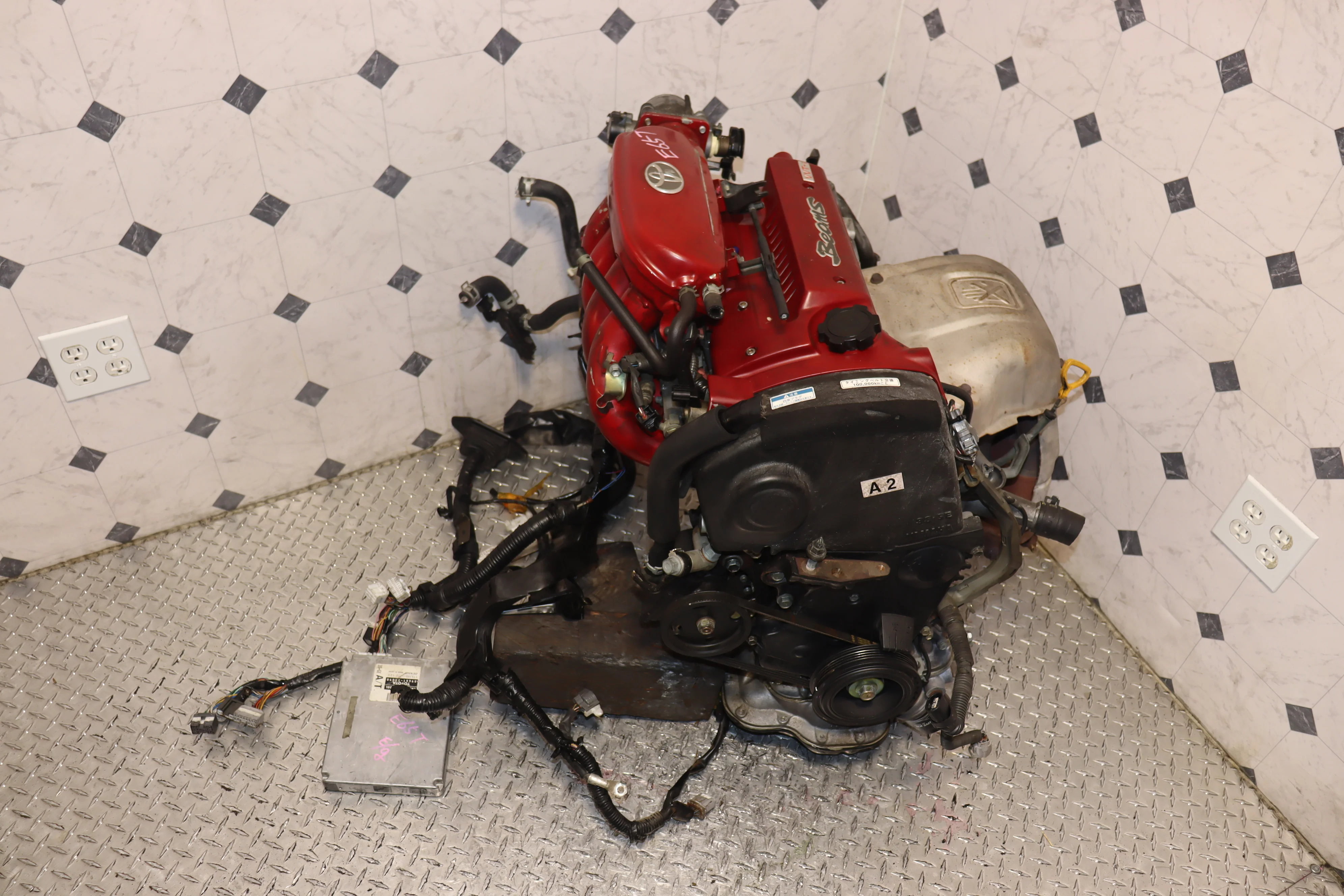

Toyota Celica SS-III ST202 3SGE JDM Engine | 2.0L Inline-4 Cylinder DOHC VVT-i Red Top Motor

Feature	Details
Engine Code	3S-GE (BEAMS Red Top)
Displacement	2.0 Liters (1,998 cc)
Configuration	Inline 4-Cylinder DOHC 16V
Valvetrain	VVT-i (Intake side)
Horsepower	200 hp @ 7,000 rpm
Torque	152 lb-ft @ 6,000 rpm
Compression Ratio	11.0:1 (High Compression)
Redline	7,200 RPM



Vehicle Fitments

This JDM 3S-GE Red Top long block is the factory-correct replacement or performance upgrade for:

• 1997-1999 Toyota Celica SS-III (ST202 Chassis - Direct Replacement)

• 1994-1999 Toyota Celica ST202 (Performance upgrade for lower trims)

• 1991-1995 Toyota MR2 (SW20) (Popular high-revving swap candidate)

• 1990-1999 Toyota RAV4 (Sport-oriented performance swap)

Note: This is a Red Top BEAMS (Front-Wheel Drive orientation). If you are looking for the "Black Top" Dual VVT-i engine for an Altezza/SXE10 (Rear-Wheel Drive), please see our other listings.

---

Installation & Technical Notes

The BEAMS 3S-GE is a high-compression, interference engine. To ensure a successful installation and maintain peak performance, follow these technical guidelines:

• Long Block Conversion: This sale includes the engine block, cylinder head, and "Red Top" valve cover. For swaps into non-SS-III vehicles, you will require the BEAMS-specific ECU, MAF sensor, and engine wiring harness to operate the VVT-i system and fuel maps correctly.

• Exhaust Manifold: The BEAMS head features unique exhaust port spacing. Use the included JDM tubular manifold or a custom BEAMS-specific header for optimal flow.

• Fuel Requirement: Due to the 11.0:1 compression ratio, this engine requires 91-93 octane premium fuel. Using lower grades will result in timing retard and loss of VTEC-like power delivery.

• Essential Maintenance: We strongly recommend replacing the following parts before installation:

  • Timing Belt & Tensioner: Critical maintenance for an interference high-RPM motor.

  • Spark Plugs: NGK Laser Platinum (BKR6EP-11 or heat range 7 for track use).

  • Engine Oil: 5W-30 or 10W-30 High-Quality Full Synthetic.

  • Camshaft Seals: Replace while the timing belt is off to prevent oil leaks into the VVT-i pulley.

• ECU Adaptation: Ensure the electrical grounds are secure. The BEAMS ECU is sensitive to voltage drops, which can cause erratic VVT-i engagement.
