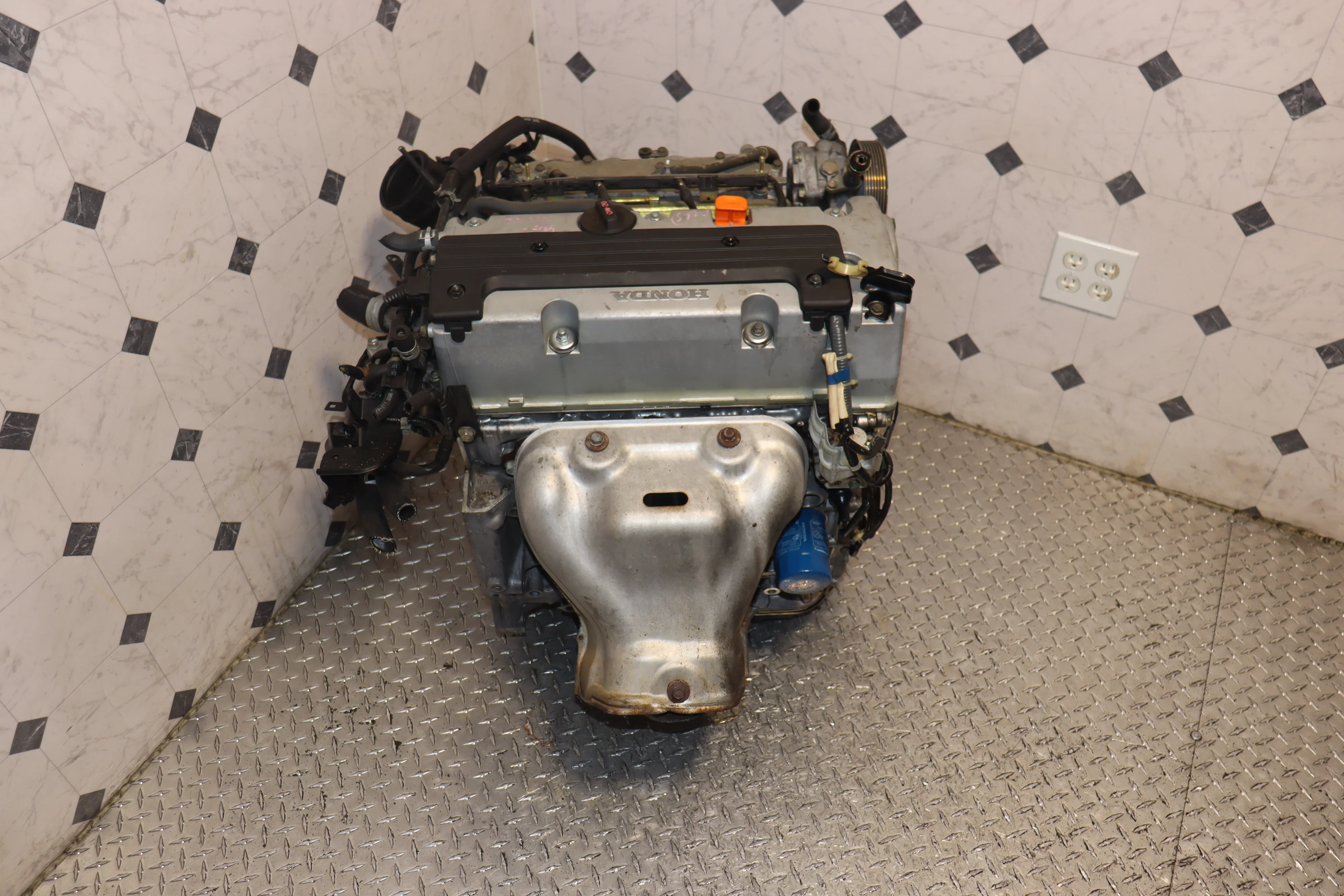

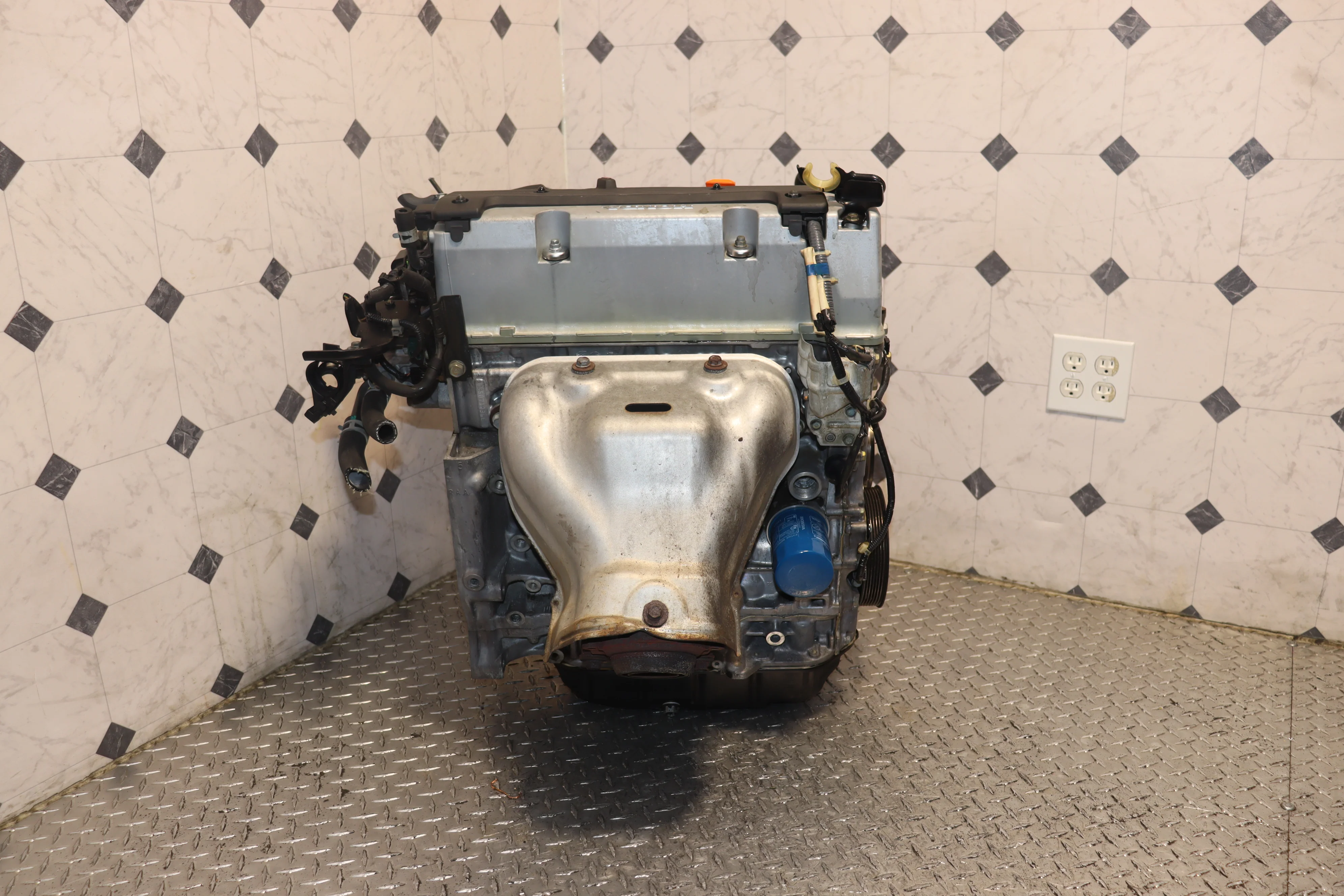

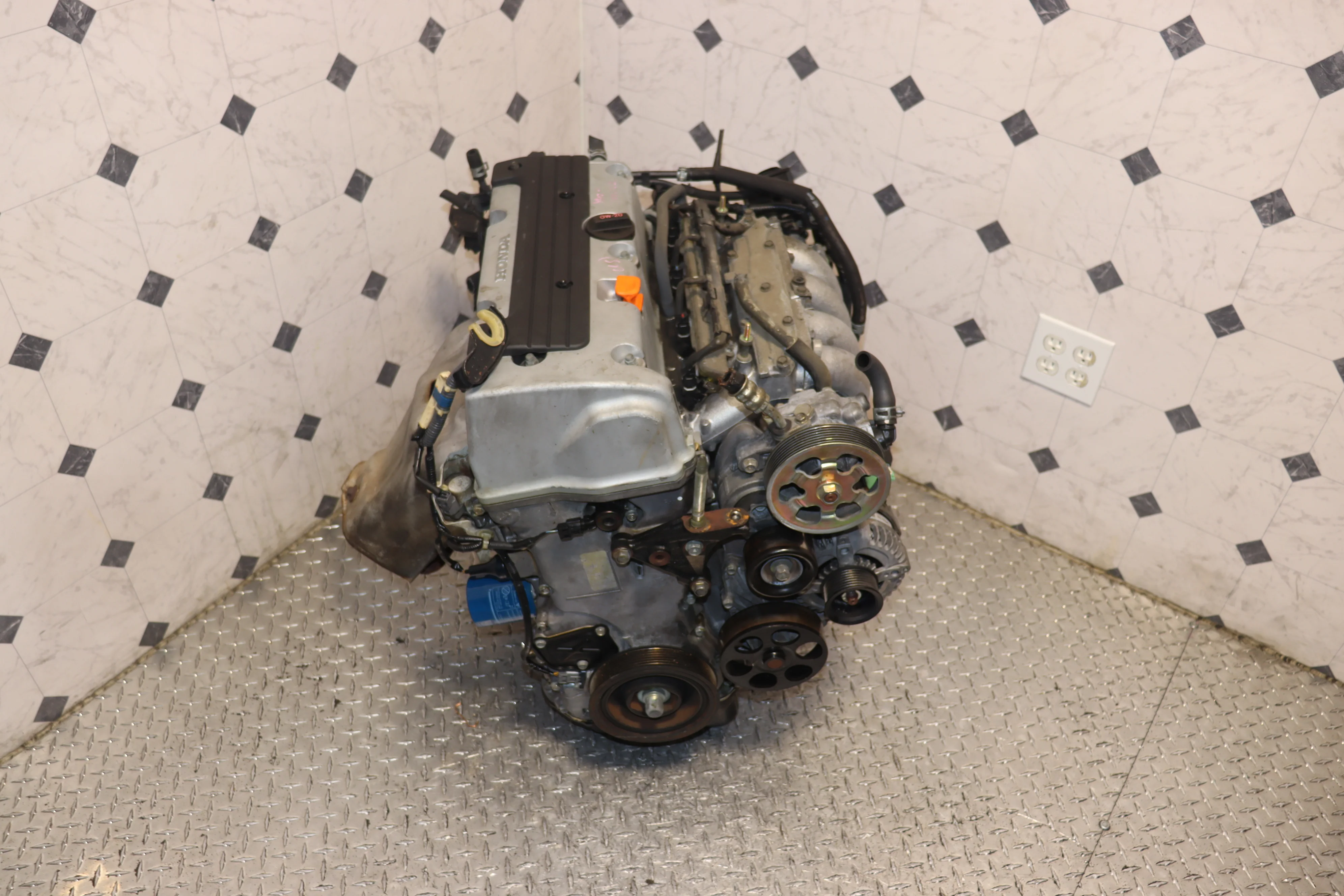

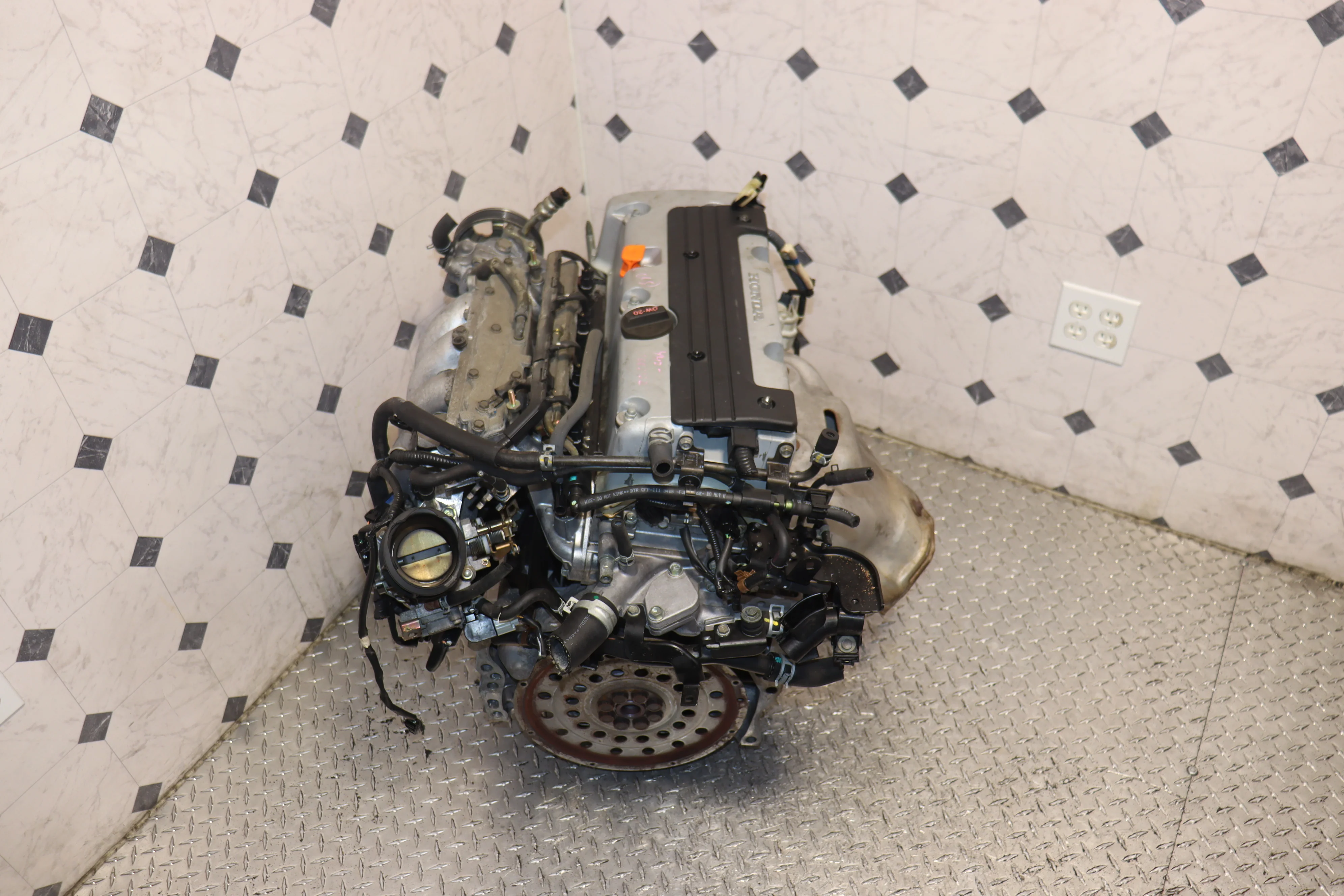

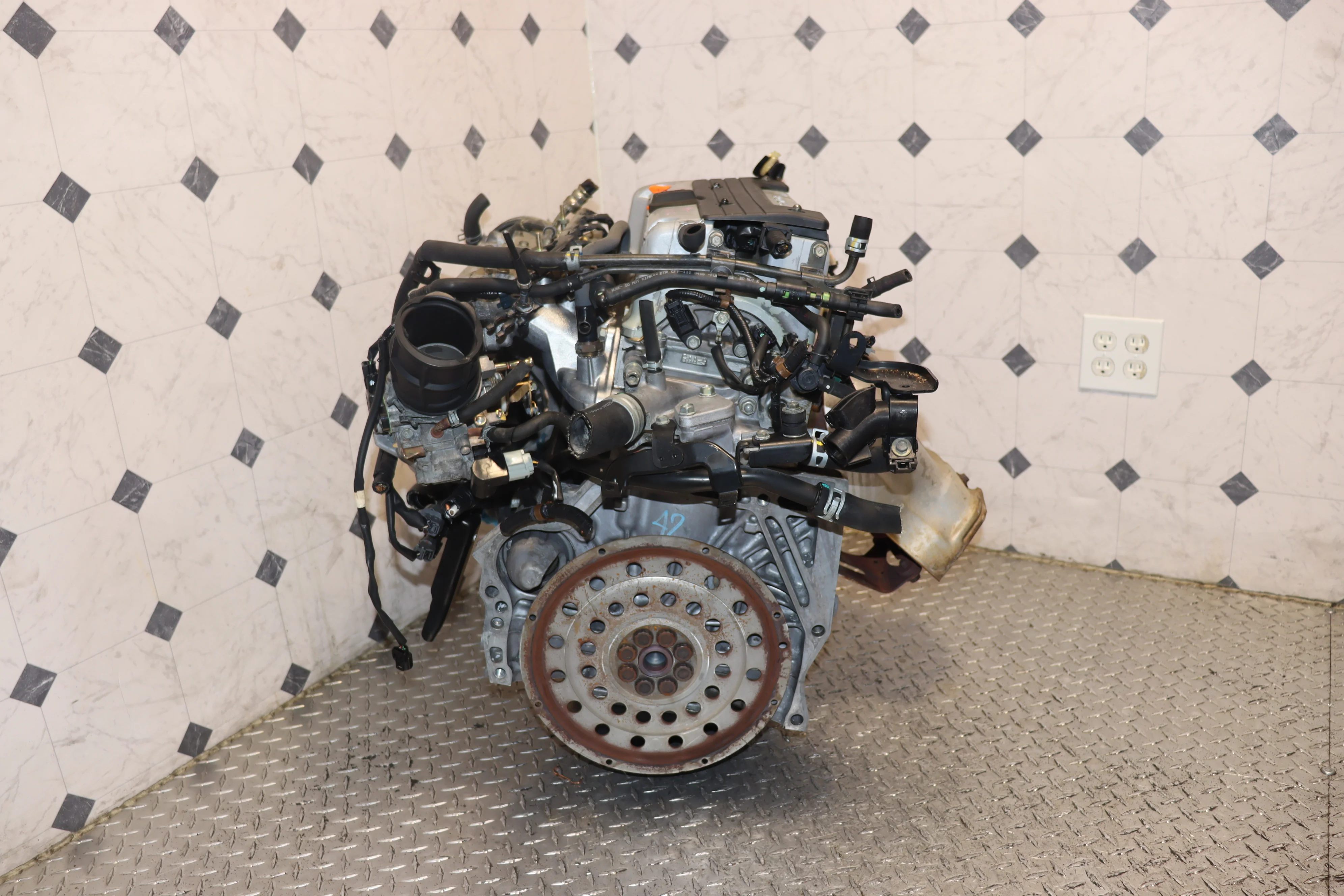

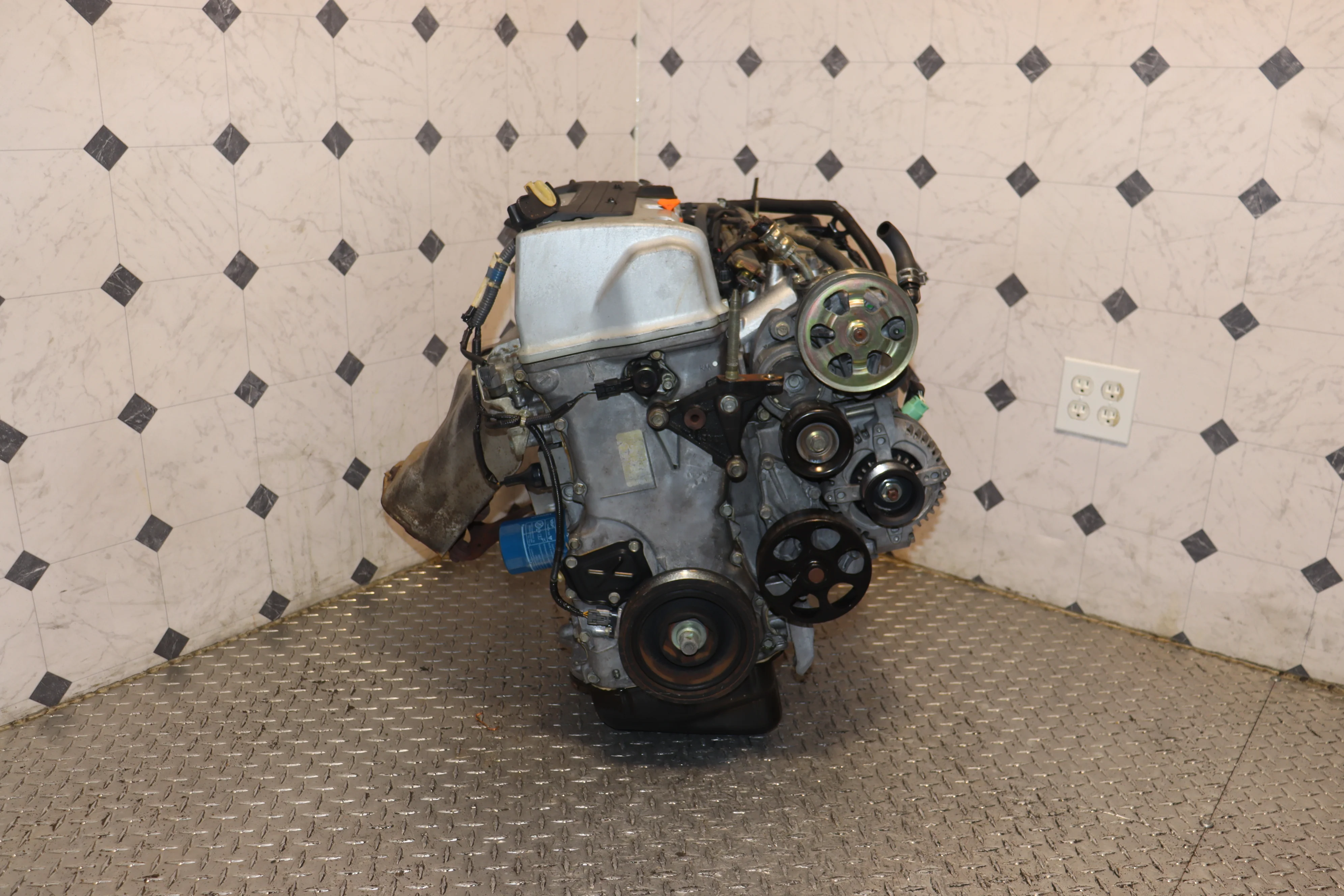

2003-2011 Honda Element K24A JDM Engine | 2.4L DOHC i-VTEC RAA Motor

Vehicle Specifications

• Engine Code: K24A (Economy VTEC version)

• Displacement: 2.4 Liter (2,354cc)

• Configuration: Inline 4-Cylinder DOHC 16-Valve

• Valvetrain: i-VTEC (Intake side)



Vehicle Fitments

• 2003-2011 Honda Element (YH1/YH2 Chassis)

• Compatibility: Fits DX, LX, EX, and SC trims originally equipped with the 2.4L engine.



• Note: This engine is a direct long-block replacement for the USDM K24A4 and K24A8.



Included Parts

• Complete JDM Engine Long Block (Cylinder Head & Block Assembly)

• Intake Manifold & Throttle Body

• Fuel Rail & Injectors

• Alternator, AC Compressor, & Power Steering Pump (Bonus items)

• Coil Packs & Engine Sensors



Installation & Notes

• USDM Conversion: To ensure 100% plug-and-play compatibility with your Element's ECU, you must transfer your original USDM intake & exhaust manifolds, coil packs, spark plugs, injectors, wiring harness and all specific sensors to this JDM unit.

• Crank Sensor: Verify the crank sensor plug matches your harness; you may need to swap your original USDM sensor and trigger wheel.

• Maintenance: We highly recommend a new water pump, thermostat, and front/rear main seals prior to installation.

• Oil: Requires 5W-20 or 5W-30 Full Synthetic Motor Oil.
